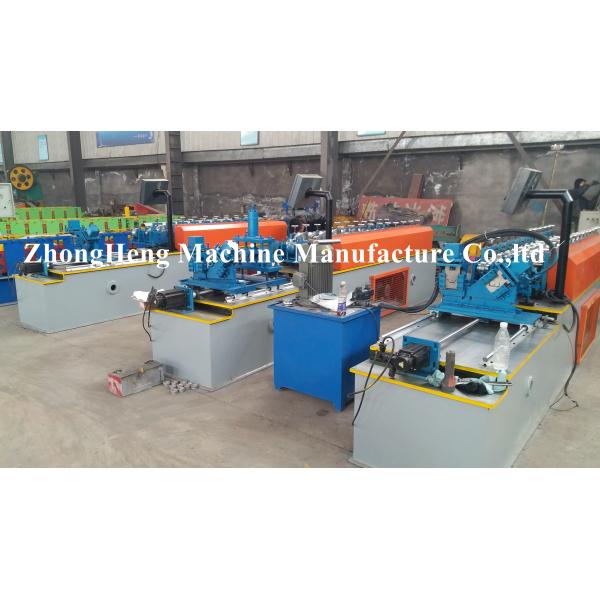

Gear transmit metal roll forming machine for 0.4mm thickness Angle profile with rib

Brand Name : ZHONGHENG
Model Number : ZH-L
Certification : CE/SGS/ISO9001
Place of Origin : China
MOQ : 1 set
Price : $9500-18000/set
Supply Ability : 80 sets/months
Delivery Time : 30 working days
Packaging Details : packaged by waterproof film cover
Condition : New
Type : angle forming machine
Forming Stations : 8
Cutting system : None stop hydraulic
Material of rollers : Cr12
servo motor : 1.5kw
speed : 45m/min
plc brand : Delta
Contact Now

Gear transmit cold roll forming machine for 0.4mm thickness Angle profile with rib


Applications:

This kind of channel used for Ceilling pratition.The final products is small angle profile,it is installed at the edge of the ceiling structure.


Competitive Advantage:


1 This production line is full automatic-------could save working time and reduce the cost.


2 New----------new developed automatic Grid production line in China


3. Ceiling mould is perfect------------could use 10 years or long


4. Price --------------is reasonable (welcome you send mail for asking the price)


5. Technic support------------10 years technican give you strong and timely support


Description:

This machine is hot sale all over the world.This machine can make U sectionand omega channels .The easy installation is impressed by customers

Specification

Gear transmit cold roll forming machine for 0.4mm thickness Angle profile with rib

Equipment operation

Automatically

Voltage

380V,50/60Hz

Thickness of material sheet

0.3--1mm(normally)

Width of material sheet

As drawing

Control system

By PLC(imported brand)

Cutting method

Hydraulic cutting

Material of roller station

Gcr12 with heat treatment

Formed width

As drawing

Working speed

28m/min

Length of finished product

set in computer, machine will cut automatically

Transmission type

gears

.

Components Details

Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame400# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps10, according to the drawing.
Shaft MaterialΦ50 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

Contact information


shirly 008615133711731
